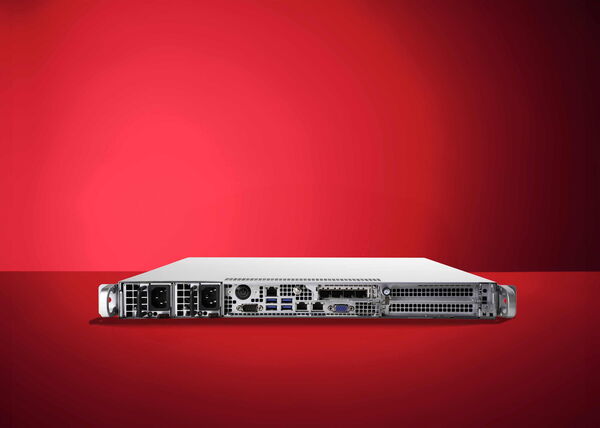

Allegro Network Multimeter 1210 / 3210 / 5210

Unmatched Performance in a Portable Device

  • For office buildings or data centers
  • 4 x SFP+ monitor ports, 2 extension slots for up to 8 more ports
  • 120 Gbit/s max. throughput
  • 32 GB - 96 GB database memory standard, expandable up to 576 GB
  • Up to 106.4 TB integrated ring buffer
  • Portable 1U (short-depth)
  • 436.88 mm long x 44.5 mm high x 429.3 mm deep
  • Weighs < 10 kg
Allegro Network Multimeter 1210, 3210, 5210

Designed for Core Networks with Massive Data

The x210 series, consisting of the Allegro 1210, 3210 and 5210 models, is optimized for the analysis, monitoring, verification and troubleshooting of network connections spanning from 1 G to 400 G. These systems come with a portable carrying case and are designed for very high (real-time) analysis and packet capture data rates, making them ideal for use in data centers, core networks and robust ISP infrastructures.

Featuring back-in-time capability, the Allegro x210 series facilitates precise selection and extraction of recorded data. Such pre-filtered pcap data can be effortlessly extracted with a simple click. Furthermore, selected data can be individually reimported into the network, enabling the recreation and replay of specific events or security incidents, e.g., with IDS / IPS systems.

Designed to adapt to your network’s unique needs, the x210 series can be customized for additional capture port connections and storage options. Each device comes equipped with 4 x SFP+ ports, which can be upgraded to either 4 x SFP28 or 2 x QSFP28 ports. The 2 extension card slots allow the number of ports to be increased by 8, with options ranging from 1 to 400 GbE Cu / SFP+ / SFP28 / QSFP / QSFP28 / OSFP ports. The In-Memory database for processing historical data starts at 32 GB in the Allegro 1210 and 96 GB in the Allegro 3210 and 5210, and can be extended up to 576 GB. The ring buffer, crucial for recording network traffic across multiple links, may be dynamically expanded by up to 1 x M.2 and up to 4 x 2.5” U.2 NVMe drives.
