Allegro Network Multimeter 1310 / 3310 / 5310 / 7310 Features

Allegro Network Multimeter x310 Series

  • For Enterprise Core Networks, Data Centers and ISP Networks
  • 2 x SFP+ monitor ports, 3 extension slots
  • Up to 240 GBit/s max. capture rate
  • 192 GB internal database memory, expandable up to 6 TB
  • Dynamic ring buffer, expandable up to 10 x 2.5" SATA / U.2. NVMe
  • Up to 1.2 million active IPs and 64 million concurrent connections
  • 437 mm long x 43 mm high x 597 mm deep
  • Weighs 20 - 30 kg

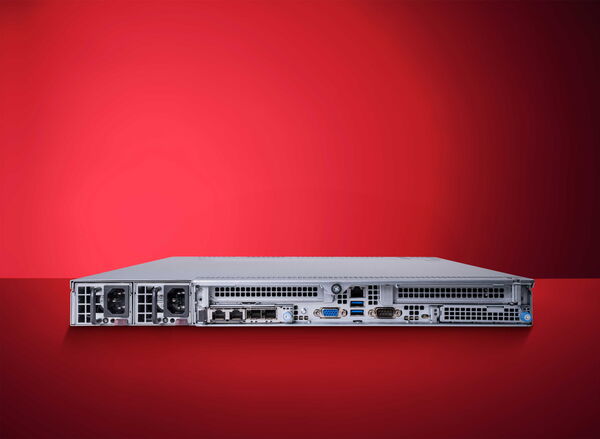

Allegro Network Multimeter 1310, 3310, 5310

Extent of Application: Enterprise Core Networks, Data Centers, ISP Networks

The x310 series, consisting of Allegro 1310, 3310, 5310 and 7310, is optimized for the analysis, monitoring, verification and troubleshooting of network connections from 1 G to 400 G. The systems are designed for very high capture recording, analysis and storage rates and allow retroactive verification of up to 1.2 million active IP addresses and 64 million concurrent connections. The Allegro Network Multimeter is ideal for use in large data centers, core networks and ISP infrastructures.

The Allegro x310 series is equipped with a back-in-time function and enables precise selection of the recorded information. The data can be extracted as pcaps as a browser download with a simple click. In addition, selected data can be individually re-imported into the network, to recreate specific events or security incidents, e. g. with IDS / IPS systems.

The x310 series has multiple extensions for additional connections and storage options. The device can process up to 240 GBit/s of real-time traffic in 400 G environments. Alternatively, the number of ports can be increased to 14, selectable from 1 / 2.5 / 5 / 10 / 25 / 40 / 100 / 200 or 400 GbE Cu / SFP+ / QSFP ports. The memory size for processing historical data in the in-memory database is 192 GB in the base version and can be expanded up to 6 TB. The ring buffer for recording the traffic on a link or the selected data traffic enables the extraction of historical packets. The ring buffer can be dynamically expanded up to 10 x 2.5“ SATA / U.2. NVMe.
