Longterm DB
Description
The Long-term DB feature (in firmware >= 4.3) uses an attached storage devices to store traffic information of IP addresses and Layer 7 protocols with low resolution for a much longer time than the live statistics.
The elements stored in the long-term DB are as follows, graph data is available in 5 minute resolution:
- IP addresses
- activity time
- traffic graph in 5 minute resolution
- Layer 7 protocols
- traffic graph in 5 minute resolution
The storage is used similar to a swap file mechanism so the long-term data is not kept between restart unless the DB persistence feature is enabled too, which is recommended when using the long-term feature. To reduce the amount of time to dump/restore, the DB persistence configuration allow to skip storing live data.
Usage
If this feature is enabled, a view toggle button appears in the top menu bar. This button allows to switch between the real time "RT" view and the long-term ("LT") view.
In the long-term view, the IP address information contain only information about the traffic amount in 5 minute resolution.
The navigation menu in the long-term view only contains those modules which are available in this view.
If the long-term view is activated on module pages which do not support long-term data, a corresponding info box is shown.
Setting

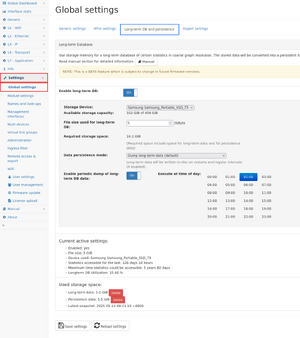

The configuration can be found in the global settings page in the "Long-term DB and persistence" tab.
To enable this feature, select a storage device to be used, enable the feature and enter a file size.
It is recommended to also enable the DB persistence feature to be able to save and restore the long-term DB data during restarts.
Once enabled, the utilization of the file is shown and the System Info Page contains information about how long the data can be kept.
Tip: Since the amount of information stored in the long-term DB is limited by the graph resolution, the file size usually don't need to be similar sized as the main memory. 10 GByte is a good starting point.
The size can be increase but it requires a restart of the packet processing.
Notes
Recommended storage device types:
| Storage device | Note |
|---|---|
| NMVe based SSD | recommended |
| SATA based SSD | can be used for moderate traffic, check system load for high system utilization |
| USB based SSD | not recommended, but might be useful for small systems (Allegro 200/500) |
| HDD | not recommended, should not be used |
It is also not recommended to place the long-term DB on the same storage device that is used a packet ring buffer as it will deteriorate the performance of both features.
Limitations
- The data in the long-term DB is limited to a selected subset of the data in the In-Memory-DB. See above for an exact list of elements available.
- The data is written into the long-term DB in variable intervals depending on traffic and system load. It takes up to 10 minutes (two graph intervals) until the data appears in the graph. Therefore, the last 5-10 minutes appear empty or with less traffic than in live view.
