Allegro Network Multimeter 500 Features

Analyses Data Rates in Gigabit Range

  • For offices or small data centers
  • 4 x 1000Base-T monitor ports
  • 4 GBit/s max. throughput
  • 4-8 GB internal database memory
  • 0.5 - 4 TB integrated ring buffer
  • Up to 1.2 millions retrospective connections
  • Portable (1 kg)
  • 148 mm long x 44 mm high x 118 mm deep
  • Weighs 1 kg

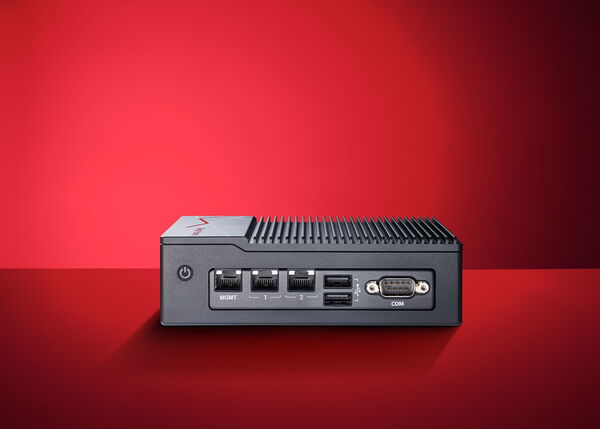

Allegro Network Multimeter 500

Allegro 500-M and Allegro 500-L

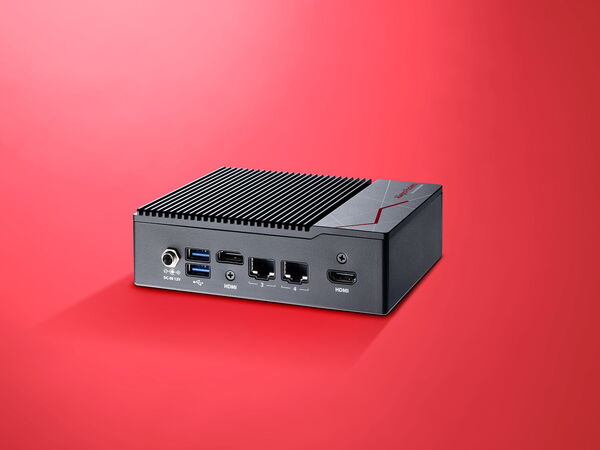

Allegro Network Multimeter 500 Seitenansicht

The Allegro 500 is a fully integrated hardware platform optimised for the analysis, monitoring and troubleshooting of 1 to 4 GBit/s connections. It is the ideal device for offices and small data centres.

Weighing less than one kilogram, the portable Allegro 500 is recommended for networks with approximately 100 active endpoints with Gigabit cabling. It allows you to monitor the last 20,000 viewed IP addresses and more than 1 million connections for retroactive debugging and investigation.

With the Allegro 500, Allegro Packets offers a compact appliance with an integrated management port and SSD. It is available in two different configurations - M and L. The Allegro 500-M has a 4 GB in-memory DB and a 500 GB SSD; the Allegro L has an 8 GB in-memory DB and a 1 TB SSD, with options to expand up to 4 TB SSD. The Allegro 500 series supports 4 x 1Gigabit ports.

The Allegro 500 operates silently (without moving parts such as fans, HDDs, etc) and is passively cooled.
